How Do Electrical Cable Lugs Deliver Reliable Termination in Harsh Environments?

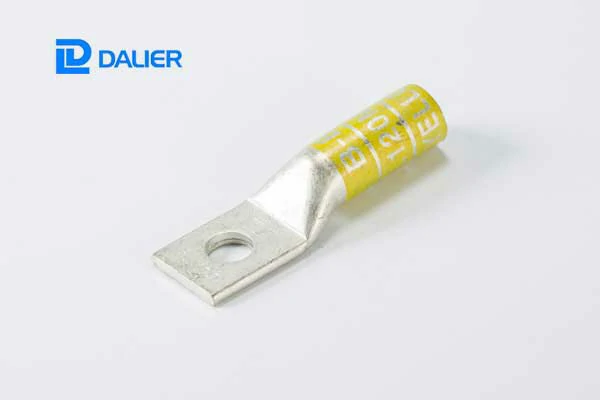

You're terminating a copper conductor in an industrial panel or an offshore rig, and the connection point is where performance either holds or fails. Electrical cable lugs provide that termination — a metal fitting that grips the conductor and bolts to the equipment terminal. The One Hole Long Barrel Copper Lug from Dalier is UL listed per 486A up to 35KV and built with a heavy-duty design that permits additional crimp for added mechanical strength. This article explains what makes a lug reliable, how to read the size chart, and where these lugs earn their keep.

How Does a Long Barrel Lug Terminate a Conductor?

Crimping, Barrel Length, and Secure Fit

A long barrel lug has an extended cylindrical section that accepts the stripped conductor. The barrel length gives you more surface area for the crimp, which translates to lower electrical resistance and higher pull-out strength. The one-hole design means a single bolt fastens the lug to the equipment terminal, which simplifies installation in tight spaces.

The heavy-duty construction permits additional crimp passes. In practice, that means you can apply a second or third crimp along the barrel to increase mechanical strength, which matters in high-vibration environments like oil rigs and mining equipment. The precision-made one-hole long-barrel design ensures a secure fit on the conductor, so the termination doesn't loosen under thermal cycling.

Why Copper Matters

Copper provides high electrical conductivity, which enables efficient power transfer with minimal voltage drop. Copper also offers strong durability and corrosion resistance, making it suitable for long-term use in tough conditions. The material choice directly affects how much heat the connection generates under load — lower resistance means less heat, and less heat means longer service life for both the lug and the conductor.

What Do the Size and Color Codes Tell You?

Reading the Dimensions Table

The One Hole Long Barrel Copper Lug comes in sizes from 8 AWG to 1000 KCMIL, with color coding to simplify identification. Each item number encodes the conductor size and the stud hole size. For example, L10M6 is a lug with a 5mm inner diameter and a 7mm outer diameter, with a total length of 38.7mm and a barrel length of 22mm. L400M16 handles 750 KCMIL with a 26mm inner diameter and a 33mm outer diameter.

The color coding lets a technician pick the right lug by sight rather than reading a tiny stamp on a dark barrel. That speeds up assembly and reduces the chance of mismatching a lug to a conductor.

What Materials and Standards Back the Product?

UL 486A Listing and Compliance

The lug is UL listed per 486A up to 35KV, which means it has been tested to the standard for wire connectors and soldering lugs. That listing covers safety and performance requirements, so you can specify the lug in systems that require recognized components. For industrial environments where inspectors check every termination, a UL-listed lug simplifies the approval process.

The 35KV rating covers medium-voltage applications, not just low-voltage panels. That range gives you one lug family for multiple voltage classes, reducing the number of part numbers you need to stock.

Where Do One-Hole Copper Lugs Get Used?

Industrial, Offshore, Mining, and Transportation

The lug is ideal for industrial, oil rig, mining, welding, and transportation termination applications. In industrial environments, it connects electrical equipment and power distribution systems. On oil rigs, it provides reliable connections for various electrical components under harsh offshore conditions, where salt spray and vibration demand a robust termination.

The heavy-duty design with additional crimp capability suits mining equipment that sees constant shock and vibration. Welding applications benefit from the high conductivity, which keeps voltage drop low and heat generation minimal. Transportation systems — whether rail, marine, or heavy vehicle — rely on lugs that don't loosen under motion.

Electrical cable lugs like the One Hole Long Barrel Copper Lug from Dalier cover the full range from 8 AWG to 1000 KCMIL, with UL 486A listing and a 35KV rating. The one-hole design keeps installation simple, and the long barrel supports a secure crimp.

Straight Answers on Long Barrel Lug Selection

Why choose a long barrel over a short barrel lug?

A long barrel gives you more surface area for the crimp, which lowers resistance and increases pull-out strength. If your application involves vibration, thermal cycling, or high currents, the longer barrel is the safer choice. Short barrel lugs work in low-stress, low-current terminations where space is tight and mechanical strength is less critical.

How do I match a lug to my conductor size?

Use the A.W.G. or KCMIL column in the size table. Match the lug's conductor range to your cable size, then select the stud hole size (M6, M8, M10, M12, or M16) that fits your terminal bolt. The color code is a secondary check — if the color matches the conductor size you're using, you've likely picked the right lug.

What's the purpose of the additional crimp capability?

The heavy-duty design permits additional crimp for added mechanical strength. In high-vibration environments, a single crimp may loosen over time. Applying a second or third crimp along the barrel increases the mechanical grip, so the termination stays tight even under constant motion. This is especially useful in oil rig, mining, and transportation applications.

Can these lugs handle medium voltage?

Yes. The UL 486A listing covers up to 35KV, which is medium voltage. That rating means the lug is tested for applications beyond low-voltage panels, including distribution equipment and industrial power systems where medium-voltage terminations are required.

Let's Find the Right Lug for Your Termination

Share Your Conductor Size and Terminal Bolt

Electrical cable lugs should match your conductor size, stud hole size, and environmental conditions — not the other way around. The One Hole Long Barrel Copper Lug from Dalier is UL listed per 486A up to 35KV, covers 8 AWG to 1000 KCMIL, and uses a heavy-duty design that permits additional crimp for added mechanical strength. If you're terminating copper conductors in industrial, offshore, mining, welding, or transportation equipment, send us your conductor size and terminal details — we'll help you confirm the right lug before you order.
