Insulated cord end terminal

Insulated cord end terminal supplier_Insulated cord end terminal

  • Umax: 105°C
  • Ui=300V
  • Material: purple copper Pipe
  • Insulating material: Nylon

Technical Parameters

Item No. Dimension Cable size Color of Insulating (top)Germany      (bottom)France
  F(mm) L(mm) W(mm) D (mm) C (mm) A.W.G (mm²)
E0506 6 12 3.4  1.3  1.0  #22 0.5 Orange
E0508 8 14 White
E0510 10 16
E0512 12 18
E7506 6 12.4 3.4  1.5  1.2  #20 0.75 White
E7508 8 14.4 Bule
E7510 10 16.4
E7512 12 18.4
E1006 6 12.5 3.6  1.7  1.4  #18 1.0  Yellow
E1008 8 14.5 Red
E1010 10 16.5
E1012 12 18.5

Outline:

Insulated cord end terminal supplier_Insulated cord end terminal drawing



One Hole Long Barrel Copper Lug

Insulated cord end terminal supplier_One Hole Long Barrel Copper Lug

  • UL listed per 486A upto 35KV
  • Ideal for industrial, Oil rig, mining, welding & transportation termination application.
  • Heavy duty design which permits additional crimp for added mechanical strength.

Technical Specification:

ITEM NO. Dimensions(mm)       Color A.W.G.
  L1 L
L10M6 5 7 38.7 22 Red 8
L16M6 4.8 7.5 53.5 36.5  Blue 6
L25M6 6 8.7  52.5  35.0  Gray 4
L35M8 7.5 10.5  52.5  33.0  Brown 2
L50M8 10 13 62 42.5  Pink 1/0
L70M10 11 14.5 69.5 47.5  Black 2/0
L95M12 13.5 17.5 85.0  53.0  Purple 4/0
L120M12 15 19 85.0  55.0  Yellow 250KCMIL
L150M12 18.5 22 94.5 67.0  Red 350KCMIL
L185M16 19 24 154 75.5  Blue 400KCMIL
L240M16 21 27  116 78.0  Brown 500KCMIL
L300M16 22.5 29 125 91.8   600KCMIL
L400M16 26 33  135 95.0  Green 750KCMIL
L500M16 30 38  143 102.0  Black 1000KCMIL

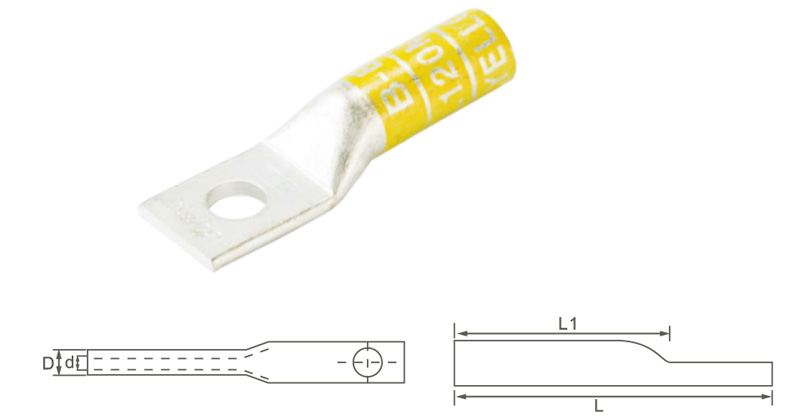

Outline:

Insulated cord end terminal supplier_One Hole Long Barrel Copper Lug Drawing
