Why Does Your Electrical System Need a Reliable Cable Lug?

You're terminating a copper conductor in a control cabinet, a distribution board, or a motor connection. The connection needs to be secure, durable, and capable of carrying current without overheating or loosening over time. An electrical cable lugs terminal is the component that makes this possible — a simple but critical device that creates a permanent, low-resistance connection between a cable and a busbar, circuit breaker, or other equipment. The TM-2 Copper Compression Terminal is one example: a two-hole, short-barrel lug crafted from electrolytic copper with tin plating for corrosion resistance. This guide covers what a cable lug does, the key specifications that determine performance, and what to look for when selecting one for your installation.

From Cable to Connection – The Critical Role of a High-Quality Termination Point

A cable lug is a termination device that connects a stripped conductor to an electrical component — a circuit breaker, a busbar, a motor terminal, or a distribution block. The lug is crimped onto the conductor, creating a mechanical and electrical bond that is both strong and conductive. The TM-2 Copper Compression Terminal is crafted for the termination of copper conductors. It offers high electrical conductivity, enabling efficient current flow, and remarkable corrosion resistance for long-term use. In electrical control cabinets of factories, it ensures stable connections for complex circuits. In residential electrical distribution boxes, it provides reliable links for power supply.

The Compression Crimping Process

The lug is placed over the stripped end of a copper conductor and crimped using a compression tool. The crimping process deforms the barrel of the lug, creating a gas-tight connection that excludes oxygen and prevents corrosion. This mechanical bond is as important as the electrical one — a poorly crimped lug can loosen, overheat, and fail.

Why Tin Plating Matters

The TM-2 features a tinned finish. Tin plating provides a barrier against oxidation and corrosion, ensuring that the connection remains low-resistance over years of service. This is particularly important in humid or industrial environments where bare copper would tarnish and degrade.

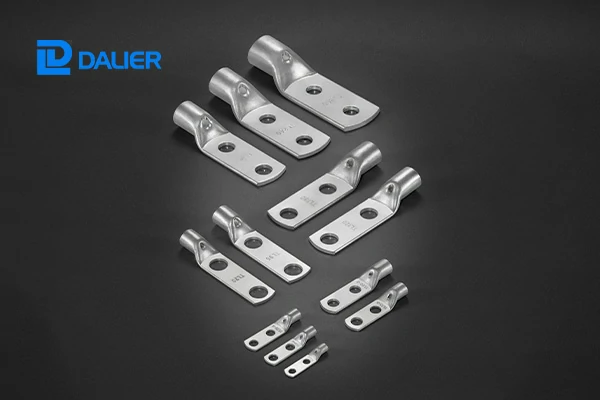

Two Holes, One Purpose – Why Dual-Bolt Mounting Matters for Stability and Reliability

The TM-2 is a two-hole lug. Two-hole lugs provide additional rotational stability and are required for most UL-listed applications above a certain current rating. The two-hole design prevents the lug from rotating around a single bolt, maintaining proper orientation and ensuring consistent contact pressure between the lug and the busbar or terminal block.

Rotational Stability

A single-bolt lug can twist under vibration or thermal cycling, potentially loosening the connection over time. The two-hole design eliminates this risk, keeping the lug fixed in position and the connection secure.

Compliance with High-Current Standards

Two-hole lugs are required for many high-current applications, particularly those covered by UL standards. The TM-2 design ensures compliance with these requirements, making it suitable for industrial and commercial installations where safety and reliability are paramount.

Electrolytic Copper with Tin Plating – The Material Combination That Ensures Conductivity and Corrosion Resistance

The TM-2 is manufactured from electrolytic copper with a tinned finish. Electrolytic copper is the highest-purity copper available, offering exceptional electrical conductivity and mechanical ductility. The tin plating provides corrosion resistance without compromising conductivity.

High-Purity Copper for Maximum Conductivity

Electrolytic copper is refined through an electrolytic process that removes impurities, resulting in a material with conductivity exceeding 100% IACS (International Annealed Copper Standard). This ensures that the lug itself does not become a source of resistance or heat in the circuit.

The Role of Tin Plating in Harsh Environments

Tin plating provides a protective layer that prevents oxidation and corrosion. In applications where the lug is exposed to humidity, chemicals, or temperature variations, the tin plating ensures that the connection remains low-resistance over the life of the installation.

Specifications That Matter – Wire Range, Stud Size, and Dimensions

The TM-2 series is available in multiple sizes to accommodate different cable cross-sections and stud sizes:

Selecting the Right Size

The wire range (in mm²) is indicated by the part number — TL-10 is for 10mm² conductors, TL-16 for 16mm², and so on. The screw diameter (in mm) indicates the stud size that the lug accommodates.

Dimensional Accuracy

Precision engineering ensures that each lug fits snugly over the conductor and the stud. Strict quality checks guarantee consistent dimensional accuracy across all sizes.

From Control Panels to Busbars – Where This Lug Delivers Reliable Performance

The TM-2 copper compression terminal is suitable for a wide range of applications:

• Electrical panels: Termination of incoming and outgoing conductors

• Circuit breaker connections: Secure connections to molded case and air circuit breakers

• Motors: Termination of motor leads in industrial and commercial applications

• Machinery: Internal wiring connections in manufacturing equipment

• Busbars: Connections to flat copper or aluminum busbars in switchgear

• Electrical distribution boards: Termination of feeders and branch circuits

The lug's high conductivity, corrosion resistance, and secure two-hole mounting make it suitable for both industrial and residential applications.

What Engineers Ask About Copper Compression Lugs

What is the difference between a one-hole and a two-hole lug?
A one-hole lug mounts with a single bolt. A two-hole lug provides additional rotational stability and is required for most UL-listed applications above a certain current rating. The two-hole design prevents the lug from rotating and ensures consistent contact pressure.

What material is used in the TM-2 lug?
The TM-2 is manufactured from electrolytic copper with a tinned finish. Electrolytic copper provides maximum conductivity, and the tin plating ensures corrosion resistance.

What is the purpose of the short barrel design?
The short barrel provides a compact termination point for applications where space is limited. The TM-2 is available in both short barrel and long barrel configurations.

How do I select the correct lug size for my cable?
Select the lug that matches your conductor cross-section. The part number indicates the wire range — TL-10 is for 10mm² conductors, TL-16 for 16mm², and so on.

What is the screw diameter range?
The screw diameter ranges from 5.3mm (TL-10) to 13.5mm (TL-300), accommodating a wide range of stud sizes.

Let's Match the Right Compression Lug to Your Cable and Connection Requirements

Selecting a copper compression lug comes down to three factors: conductor size (match the wire range), stud size (match the mounting bolt), and environmental conditions (match the need for tin plating or other finishes). Contact Dalier for technical support and samples → —their team can help you select the right TM-2 configuration for your specific termination needs.

Dalier manufactures a range of cable lugs and terminals for industrial and commercial applications. The TM-2 Copper Compression Terminal - Two Holes / Short Barrel is crafted for the termination of copper conductors, offering high electrical conductivity and corrosion resistance for long-term use. Available in sizes from TL-10 to TL-300 with screw diameters from 5.3mm to 13.5mm. Applications include electrical panels, circuit breaker connections, motors, machines, busbars, and electrical distribution boards. Dalier provides comprehensive technical support and after-sales service. Connect with Dalier to discuss your conductor size requirements, stud specifications, and installation environment.
