Product Description

Parallel terminal

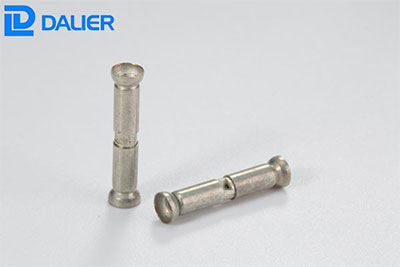

Parallel terminal manufacturer_Parallel terminal

Material: purple copper

Insulating material: PVC

Technical Parameters:

Item No. Cable size   Dimension     Imax
  A.W.G mm² I(mm) d (mm) L(mm)
PVT1.25 22-16 0.5-1.5 8 1.7 16 19A
PVT2 16-14 1.5-2.5 8 2.3 16 27A
PVT5.5 43809 43561 8.5 3.4 20.5 48A
Maximum number of switching operation a day   100   上胶方式   4P 415V~ Gross Power
Additional characteristics       电源 Insulation voltage Ui 500V Gross Weight
Insulation vwltage(Ui)   500V AC   操作人员 Rated frequency 50/60Hz Overall Dimension

Outline:

Parallel terminal manufacturer_Parallel terminal drawing



Super Butt Splice

Parallel terminal manufacturer_Super Butt Splice

AWG (American Wire Gauge) terminal and connector suit for American market and area that use such standard, for example: USA,CANADA,MEXICO,COLOMBIA,KINGDOM OF SAUDI,THAILAND,PHILIPPINES etc.

Technical Parameters:

DESCRIPTION
15130 26-18 Super Butt Splice
15330 16-18 Super Butt Splice
15430 12-10 Super Butt Splice
