High-Quality Non-Insulated Terminals: Durable Solutions for Industrial Wiring

Introduction to Non-Insulated Terminals

Non-insulated terminals are essential components in electrical and industrial applications, providing reliable connections between wires and electrical components. Unlike insulated terminals, these connectors offer direct metal-to-metal contact, ensuring maximum conductivity and heat dissipation.

Our non-insulated terminals are precision-engineered from high-quality oxygen-free copper with a tin-plated finish, delivering exceptional durability and resistance to corrosion. Each terminal undergoes rigorous 24-hour salt spray testing to ensure long-lasting performance in even the harshest environments.

Types of Non-Insulated Terminals

Spade Terminals (SNB)

Spade terminals, also known as quick-disconnect terminals, provide a secure yet easily removable connection. They feature a flat, spade-shaped end that slides into a matching receptacle, making them ideal for applications requiring frequent disconnection.


Ring Terminals (RNB)

Ring terminals offer a permanent, vibration-resistant connection. The circular design slips over a bolt or stud, providing a stable connection that won't come loose under mechanical stress. These are commonly used in automotive, industrial machinery, and electrical panel applications.

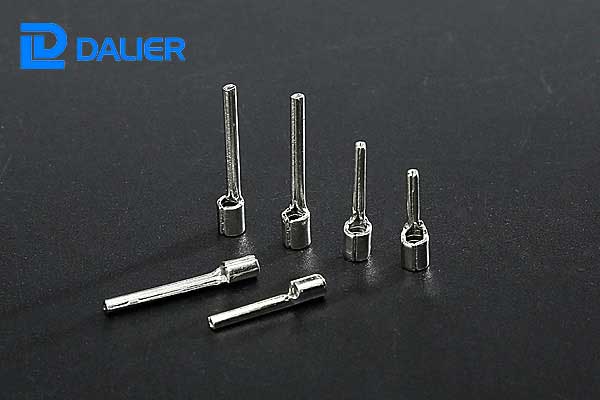

Pin Terminals (PTN)

Pin terminals feature a cylindrical pin that inserts into a socket or connector housing. They provide excellent alignment and are often used in electronic equipment, control panels, and sensor connections where precise alignment is critical.

Cord End Terminals (EN)

Cord end terminals, also known as wire ferrules, provide a clean, professional finish to wire ends. They prevent fraying and make inserting wires into terminal blocks or connectors easier, while also improving conductivity and reducing the risk of short circuits.

Butt Splice Terminals (BN)

Butt splice terminals are used to join two wires together end-to-end. They provide a low-resistance connection and are ideal for extending wires or repairing damaged ones in applications where space is limited.

Blade Terminals (DBN)

Blade terminals feature a wide, flat blade that inserts into a compatible socket. They offer high current-carrying capacity and are commonly used in power distribution systems, battery connections, and heavy-duty industrial applications.

Why Choose Our Non-Insulated Terminals?

1. Superior Conductivity: Made from high-purity oxygen-free copper for maximum electrical conductivity
2. Corrosion Resistance: Tin-plated finish provides excellent resistance to oxidation and corrosion
3. Durability: 24-hour salt spray tested to ensure long service life in harsh environments
4. Easy Installation: Designed for quick and secure crimping with standard tools
5. Versatility: Available in a wide range of types and sizes to suit any application
6. Cost-Effective: High-quality construction reduces maintenance and replacement costs over time

Applications

Our non-insulated terminals are suitable for a wide range of applications, including:

• Industrial machinery and equipment
• Automotive wiring harnesses
• Electrical panels and control systems
• Telecommunications infrastructure
• Renewable energy systems (solar, wind)
• Audio and video equipment
• Marine and aerospace applications

Installation Tips

1. Choose the Right Size: Select a terminal that matches the wire gauge for a secure fit
2. Proper Crimping: Use a high-quality crimping tool designed for the terminal type
3. Inspect Connections: Always inspect crimped connections for proper alignment and secure fit
4. Avoid Over-Crimping: Excessive force can damage the terminal or wire, reducing conductivity
5. Follow Safety Guidelines: Always disconnect power before working on electrical systems

Conclusion

Investing in high-quality non-insulated terminals is essential for ensuring reliable, long-lasting electrical connections in any application. Our precision-engineered terminals offer superior performance, durability, and versatility, making them the ideal choice for professionals and DIY enthusiasts alike.

Whether you're working on industrial machinery, automotive wiring, or electrical panels, our non-insulated terminals provide the secure, low-resistance connections you need to get the job done right. Browse our full range of non-insulated terminals today and experience the difference quality makes.
