Electrical cable lugs are essential connectors that secure cables to electrical equipment, and choosing t...
MoreConvenient range-taking design. One connector accommo-dates several conductor sizes. High conductivity copper alloy. Long lasting reliable contact. Compact design. Easy to use, Reduces labor time. Slot Robertson screw, hex head /hex socket bolt. No special installation tools required. Eliminates over-torquing /potential conductor damage.
Product Parameters
High copper alloy terminal with offset tongue for joining a wide range of cable to equipment pads or bar. Easy to install with screwdriver or wrench. Connector is re-usable. Plain copper finish.
| FEATURES | BENEFITS |
| Convenient range-taking design. | Raduces catalog number. One connector accommo-dates several conductor sizes. |
| High conductivity copper alloy. | Long lasting reliable contact. |
| Compact design. | Easy to use, Reduces labor time. |
| Slot Robertson screw, hex head /hex socket bolt. | No special installation tools required. Eliminates over-torquing /potential conductor damage. |
| Catalog Number |

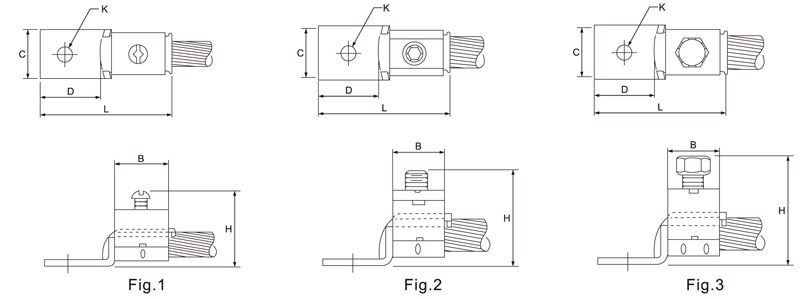

Fig. | Wire Range |
B | C | D | H | K | Stud Hole Size |
L | Screw Type |
Screw Size |
Recommendes Tightening Torque |
| KLU25 | 1 | 14-10 | 0.28 | 0.31 | 0.47 | 0.66 | 0.14 | 8 | 0.91 | Slot Robertson |
8/32 | 20 |
| KLU35 | 1 | 14-6 | 0.43 | 0.38 | 0.57 | 0.91 | 0.20 | 10 | 1.17 | Slot Robertson |
1/4 | 45 |
| KLU70 | 1 | 8-2 | 0.50 | 0.50 | 0.61 | 1.05 | 0.27 | 1/4 | 1.32 | Slot Robertson |
5/16 | 50 |
| KLU125 | 1 | 2-1/0 | 0.61 | 0.62 | 0.86 | 1.50 | 0.26 | 1/4 | 1.78 | Slot Robertson |
3/8 | 50 |
| KLU175 | 2 | 4-3/0 | 0.75 | 0.75 | 1.20 | 1.40 | 0.41 | 3/8 | 2.20 | Hex Socket | 3/8 | 124 |
| KLU225 | 2 | 2-4/0 | 1.00 | 1.00 | 1.24 | 1.64 | 0.34 | 5/16 | 2.54 | Hex Socket | 7/16 | 204 |
| KLU300 | 3 | 1/0-350 | 1.21 | 1.10 | 1.60 | 2.63 | 0.41 | 3/8 | 3.25 | Hex Head | 5/8 | 325 |
| KLU400 | 3 | 1/0-500 | 1.49 | 1.50 | 2.12 | 2.74 | 0.41 | 3/8 | 4.26 | Hex Head | 5/8 | 375 |
| KLU650 | 3 | 600-1000 | 1.88 | 2.00 | 1.90 | 3.73 | 0.53 | 1/2 | 4.61 | Hex Head | 3/4 | 500 |
ALL SIZE ARE INCH
One Hole Offset Floating Tongue Lug Cable lug
