product description

Special Pin Vinyl-Insulated Terminal

Pin Vinyl-Insulated Terminal Supplier_Pin Vinyl-Insulated Terminal

Pre-Insulated Pin Terminal manufactured in copper with tin coating by galvanic electroplating process.

Outline:

Pin Vinyl-Insulated Terminal Supplier_Pin Vinyl-Insulated Terminal Drawing



Non-Insulated Terminals

Pin Vinyl-Insulated Terminal Supplier_Non-insulated blade terminal DBN

  • Cable size: 0.5~1.5mm²(A.W.G.22~16)
  • Max current: Imax=19A
  • Material: purple copper
  • Thickness: 0.75mm

Technical Specification:

Item No Dimension         color
  B L F H
DBN 1.25 - 10 2.3 20 10 10 4.3 red
DBN 1.25 - 11 3 21 11
DBN 1.25 - 14 3 24 14
DBN 1.25 - 18 2.3 28 18

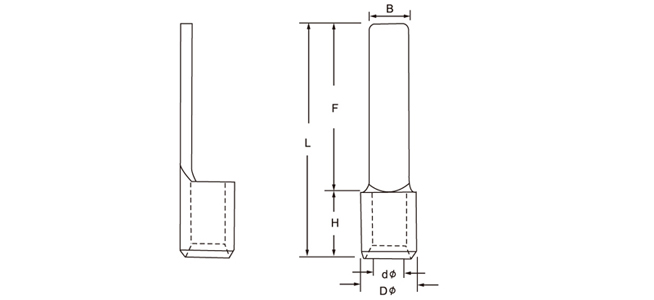

Outline:
Pin Vinyl-Insulated Terminal Supplier_Non-insulated blade terminal drawing
